| الدفع نوع: | T/T |
| إنكوترم: | FOB,EXW,FCA |
| أدني كمية الطلب: | 1 |
الظل:

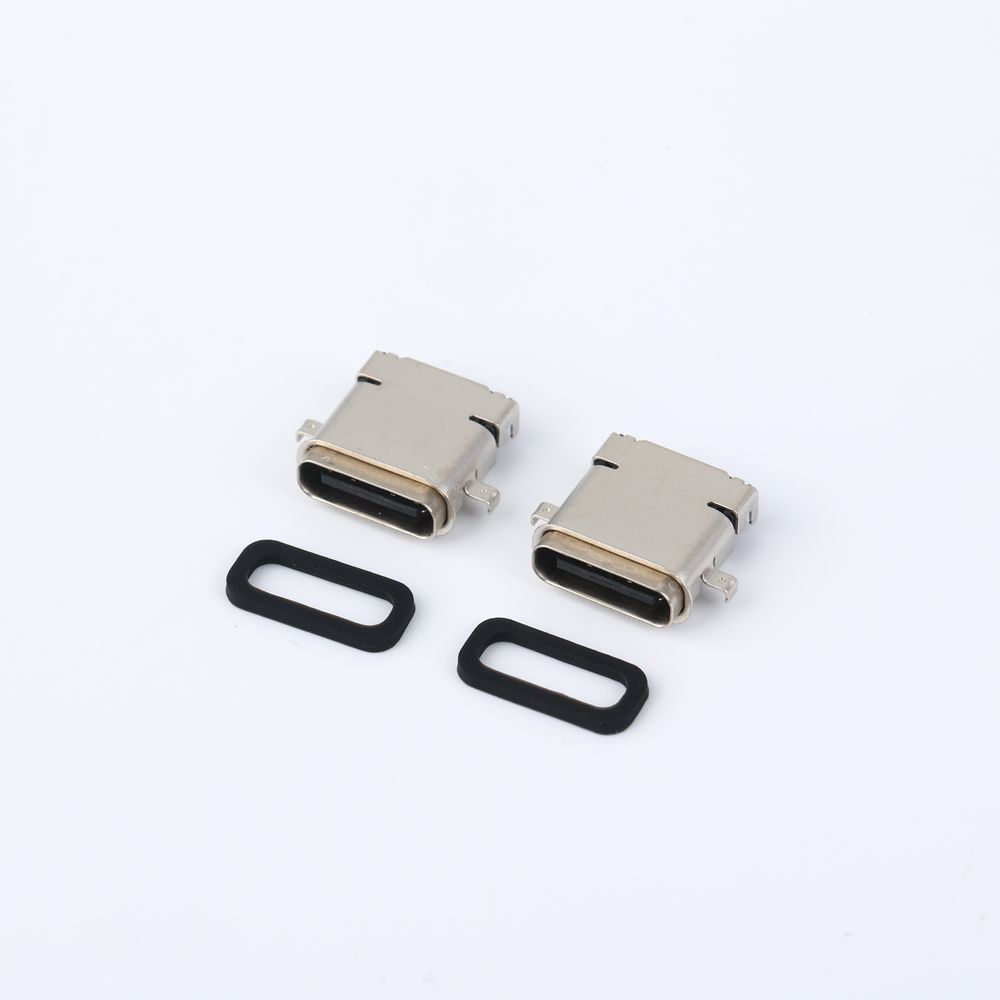

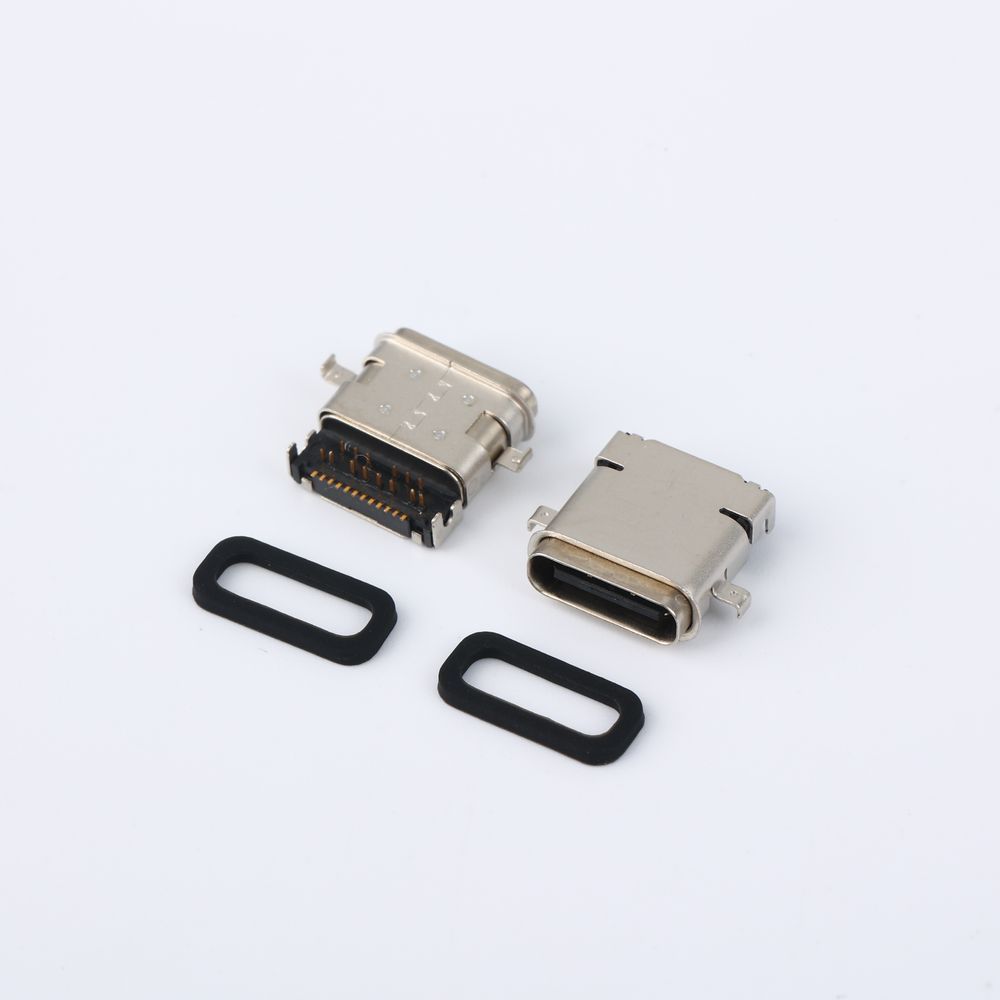

نموذج: AAUS+TC24P+J4FZL2, USB 3.1 CL=0.3mm CH=-1.4mm DIP
علامة تجارية: ييفينغ
| تحميل | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | HIGH TEMP BLACK. |
| TERMINAL A/B: | HIGH-CONDUCTIVITY COPPER, AU 10U'' PLATING, T=0.12mm |
| MID PLATE: | STAINLESS STEEL, T=0.15mm |
| GND PLATE: | STAINLESS STEEL, NI PLATING, T=0.10mm |
| SHELL-1: | STAINLESS STEEL, NI PLATING, T=0.2mm |
| SHELL-2: | STAINLESS STEEL, NI PLATING, T=0.2mm |
| GLUE WATER: | EPOXY, BLACK |
| CONTACT CURUENT RATING: | |
| 5A (VBUS PIN 1.5A/PIN), 5A (GND PIN 1.25A/PIN MAX), 0.25A/PIN (OTHER PIN) | |
| INSULATION RESISTANCE: | 100mΩ MIN AT 250VDC |
| DIELECTRIC WITHSTANDING VOLTAGE: | 100V AC MIN |
| LOW LEVEL CONTACT RESISTANCE: | INITIAL 40mΩ MAX, AFTER 50mΩ MAX |
| MECHANICAL CHARACTERISTICS: | |
| INSERTION FORCE : | 5~20N |
| WITHDRAWAL FRCE : | 8~20N (INITIAL), 6~20N (AFTER 10000 CYCLES) |
| DURABILITY: | 10000 CYCLES |
| OPERATING TEMPERATURE: | -40℃~+80℃ |
