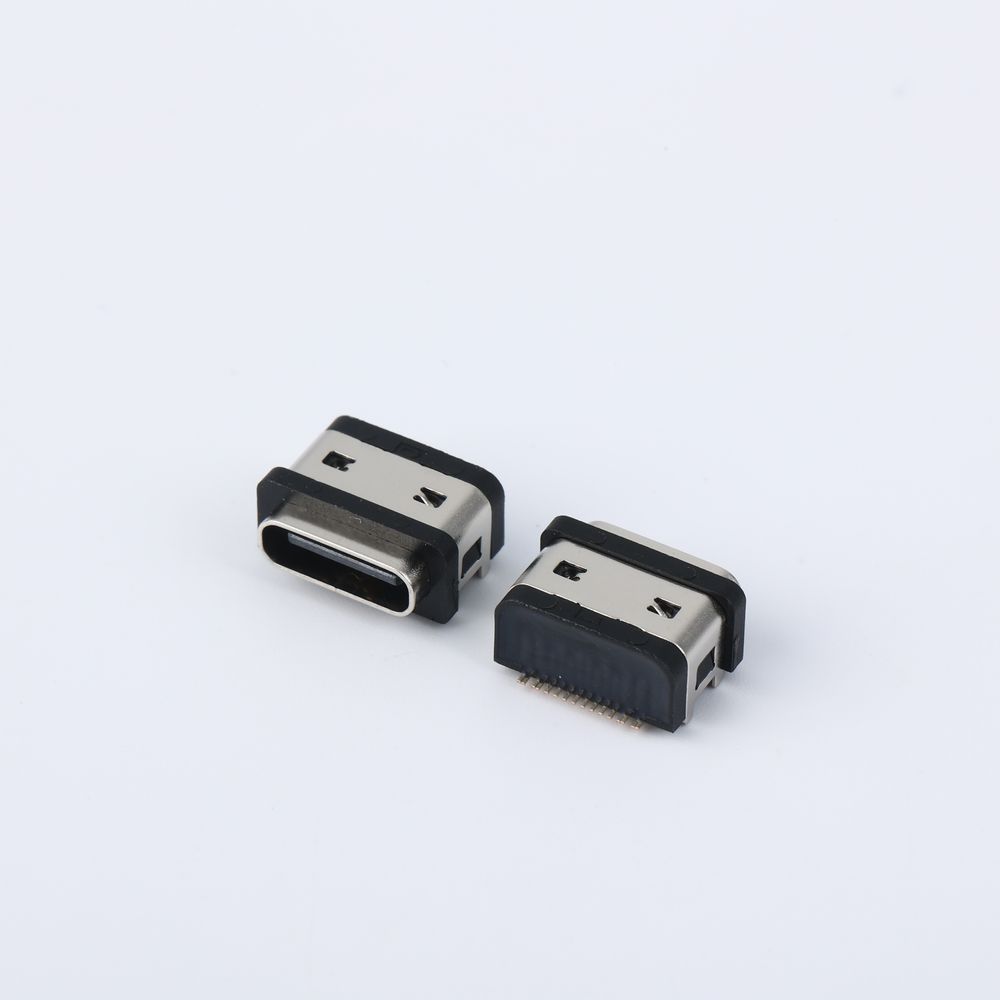

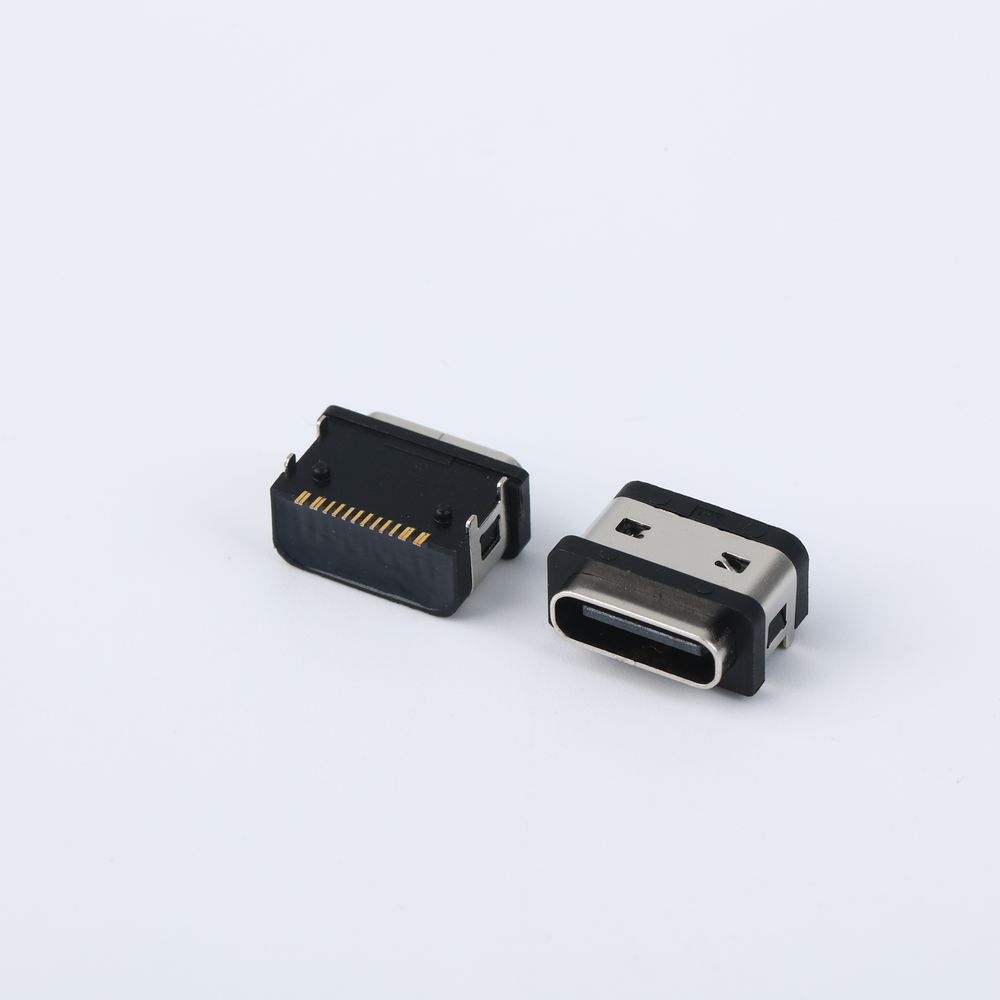

نموذج: AAUS+16C2+LV1TA, 16PIN Type-C IPX7 SMT
علامة تجارية: ييفينغ
| تحميل | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | LCP UL94V-0 BLACK |
| CONTACT: | BRASS |
| CONTACT PLATING | Au 1U'' MIN |
| SOLDING PLATING | Au 1U'' |
| SHELL HOUSING: | PA46 UL94V-0 BLACK |
| INSIDE SHELL: | STAINLESS STEEL, SUS304 NI PLATED 40U'' MIN |
| OUT SHELL: | STAINLESS STEEL, SUS304 NI PLATED 40U'' MIN |
| RUN-RING: | SILICA GEL BLACK |
|
ELECTRICAL:
|
|
| CURUENT RATING: | VBUS AND GEN CONTACTS RATED AT 1.25A MAX PARALLELED FOR A TOTAL OF 5A |
| INITIAL CONTACT RESISTANCE: | 40 MILLIOHMS |
| DIELECTRIC WITHSTANDING VOLTAGE: | 100V AC MIN |
| MECHANICAL CHARACTERISTICS: | |
| INSERTION FORCE : | 5~20N |
| WITHDRAWAL FRCE : | 8~20N (INITIAL), 6~20N (AFTER 10000 CYCLES) |
| FREQUENCE: | 10000 CYCLES |
| OPERATING TEMPERATURE: | -30℃~+85℃ |
| WATERPROOF: | IPX7 |
