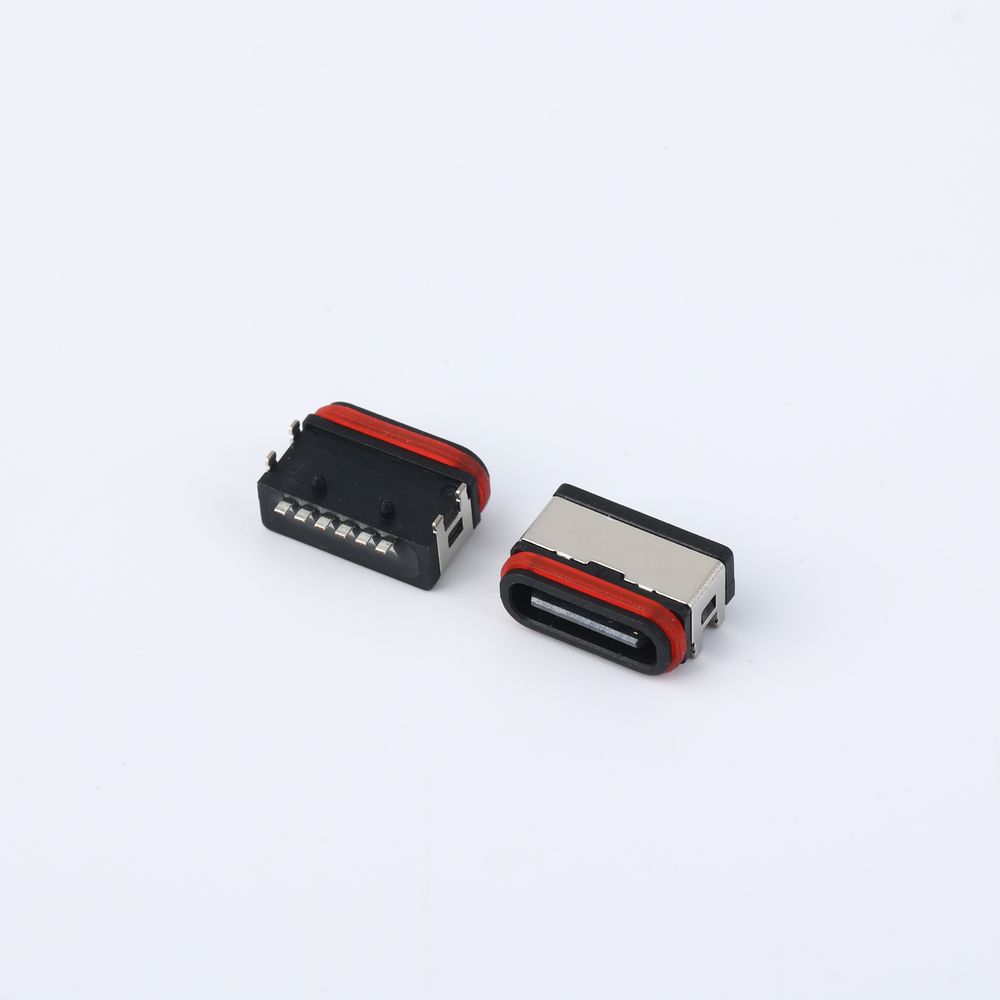

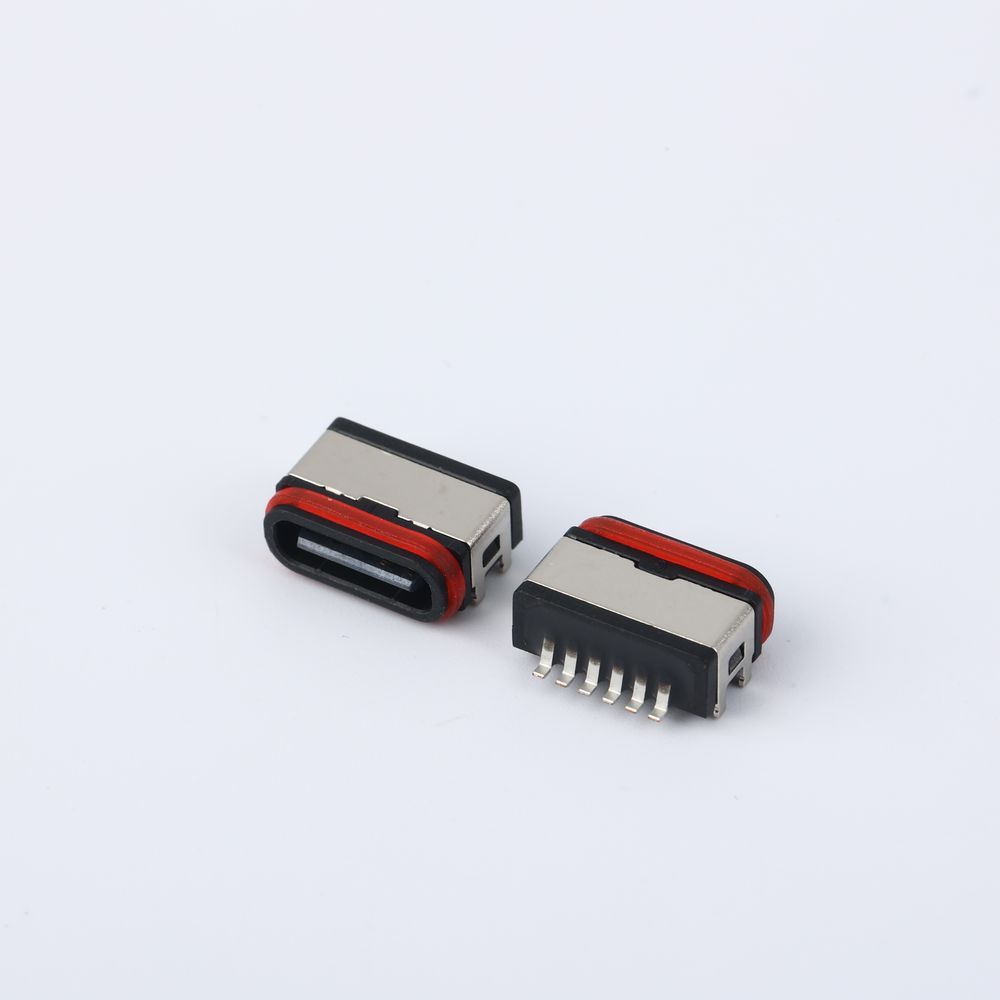

نموذج: AAUS+06C2+LV3TA 6PIN Type-C IPX7 DIP
علامة تجارية: ييفينغ
| تحميل | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| CURUENT RATING: | 3.0A |
| VOLTAGE RATING: | 5.0V |
| VBUS & GND PINS AND OTHER PINS: | 40mΩ/PIN MAX |
| SHIELD: | 50mΩ/MAX |
| LLCR MAX CHANGE OF ALL PINS: | 10mΩ |
| INSULATION RESISTANCE: | 100mΩ MIN |
| DIELECTRIC WITHSTANDING VOLTAGE: | 100V AC FOR 1 MINUTE |
| MECHANICAL CHARACTERISTICS: | |
| INSERTION FORCE : | 5~20N |
| WITHDRAWAL FRCE : | 8~20N |
| DURABILITY: | 10000 CYCLES |
| OPERATING TEMPERATURE: | -25℃~+85℃ |
|
THE PEAK TEMPERATURE ON THE BOARE SHALL BE MAINTAINED FOR 10 SECONDS AT 260℃.
|
|
| WATERPROOF: | IP67 |
