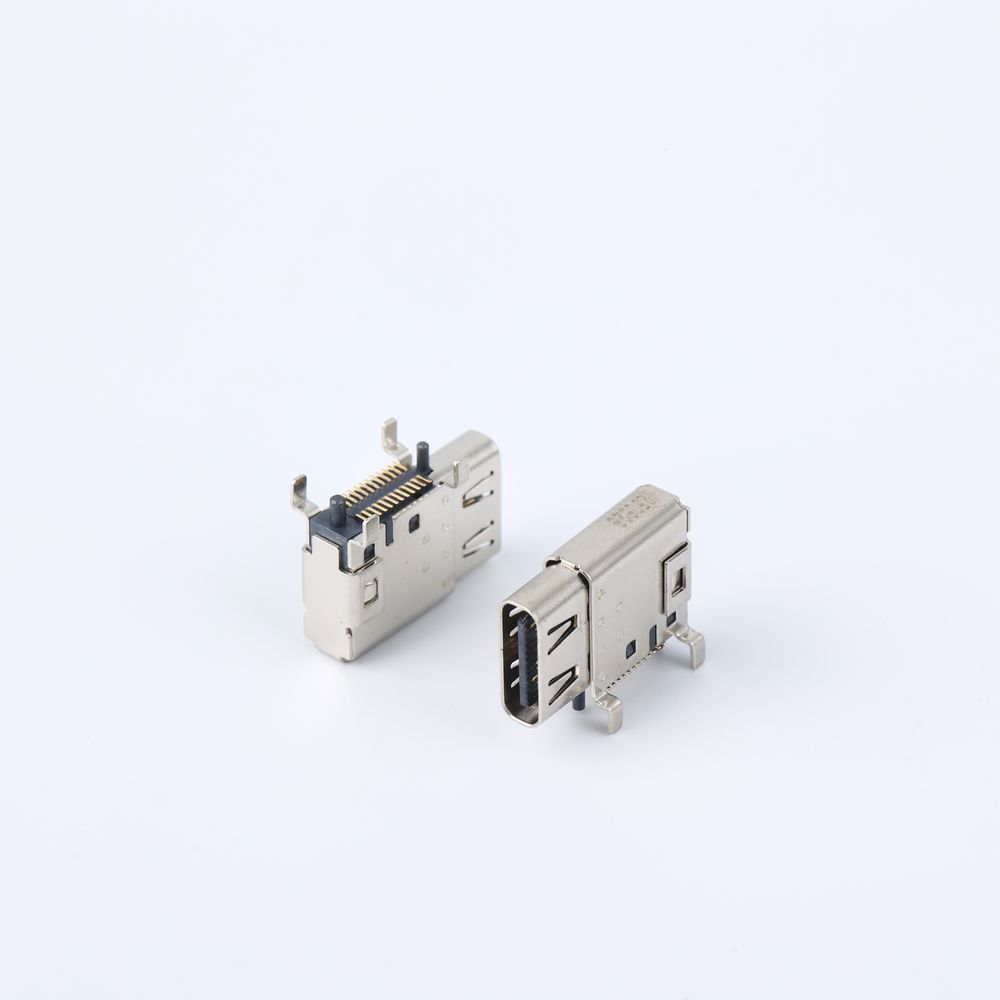

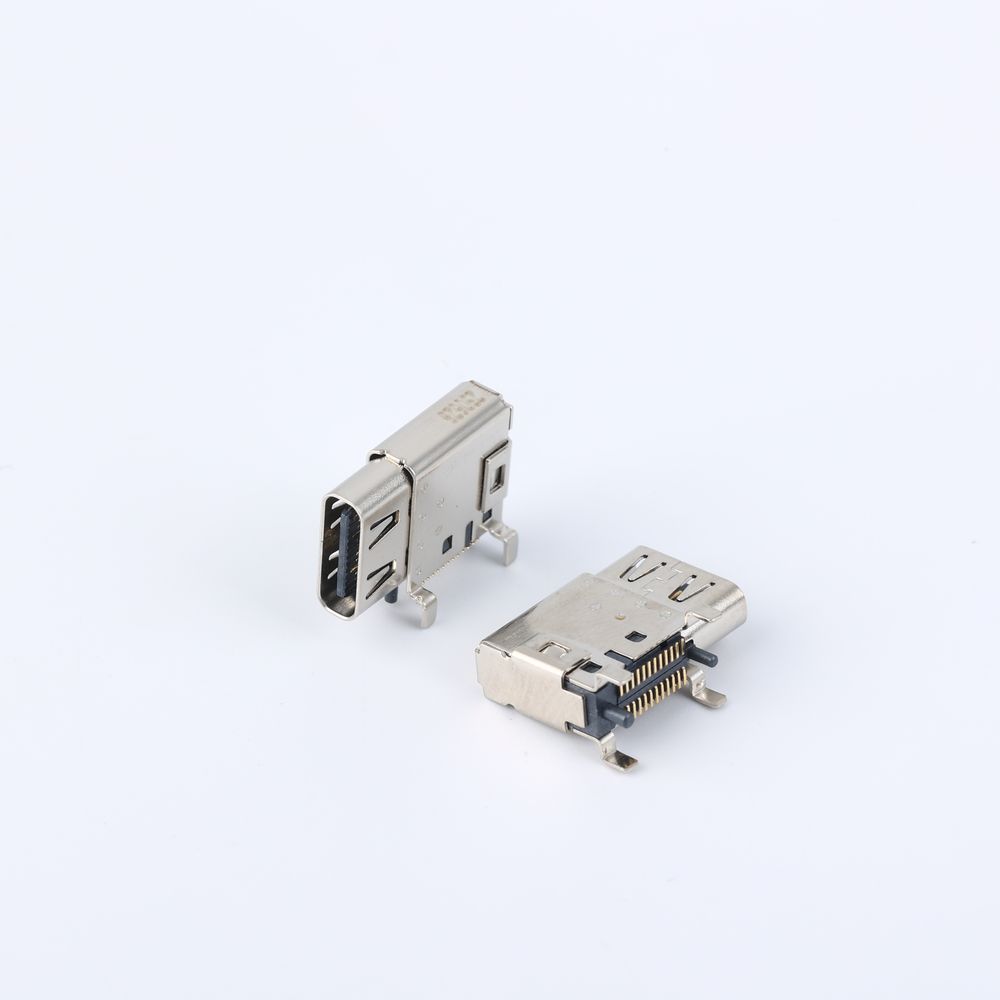

نموذج: AAUS+CFJ22+2BGXX Type-C 24PIN GEN2 SMT 5.06
علامة تجارية: ييفينغ
| تحميل | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | LCP UL94 V-0 BLACK |
| TERMINAL: | C7025/C18400 |
| PLATED GOLD ON CANTACT AREA | |
| G/F GOLD ON SOLDER AREA | |
| 50u” NICKEL PLATING OVER ALL | |
| MID PLATE: | SUS301 |
| FRONT SHEEL: | SUS304, 50u” NICKEL PLATED |
| BACK SHELL: | SUS304, 50u” NICKEL PLATED |
| MECHANICAL: | |
| INSERTION: | 5~20N |
| EXTRACTION: | 8~20N |
| DURABILITY: | 10000 CYCLES |
| ELECTRICAL: | |
| CURRENT: | 5A MAX FOR VBUS PIN 1.25A FOR VCONN PIN 0.25A FOR OTHER PINS |
| VOLTAGE: | 20VDC MAX |
| CONTACT RESISTANCE: | 40mΩ MAX |
| INSULATON RESISTANCE: | 100mΩ MIN |
| DIELECTRIC WITHSTANDING VOLTAGE: | 100V AC MIN |
| ENVIRONMENTAL: | |
| TEMPERATURE RANGE: | -25℃ ~ +85℃ |
| RECOMMENDED PROCESS: | |
| THE PEAK TEMPERATURE ON THE BOARD SHALL MAINTAIN AT 260℃ | |
