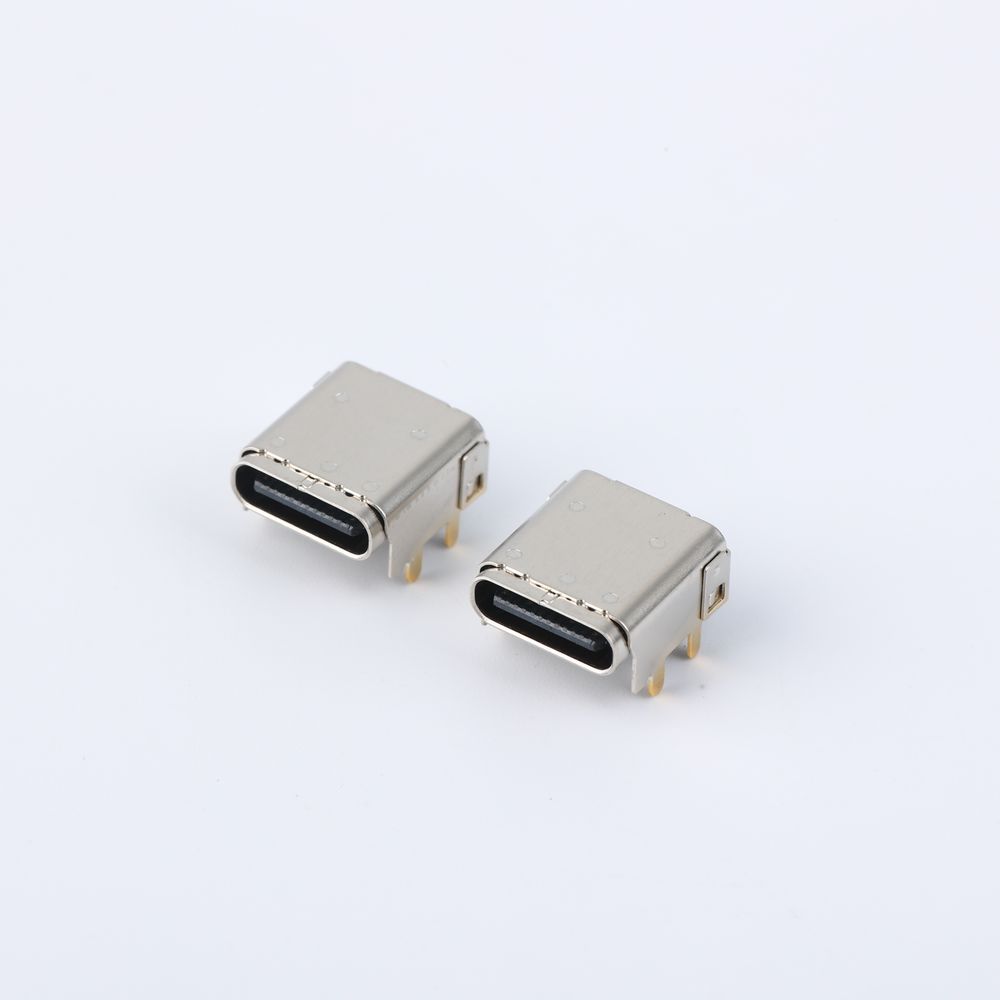

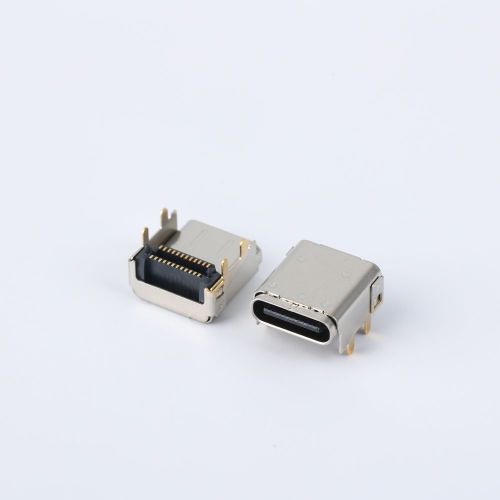

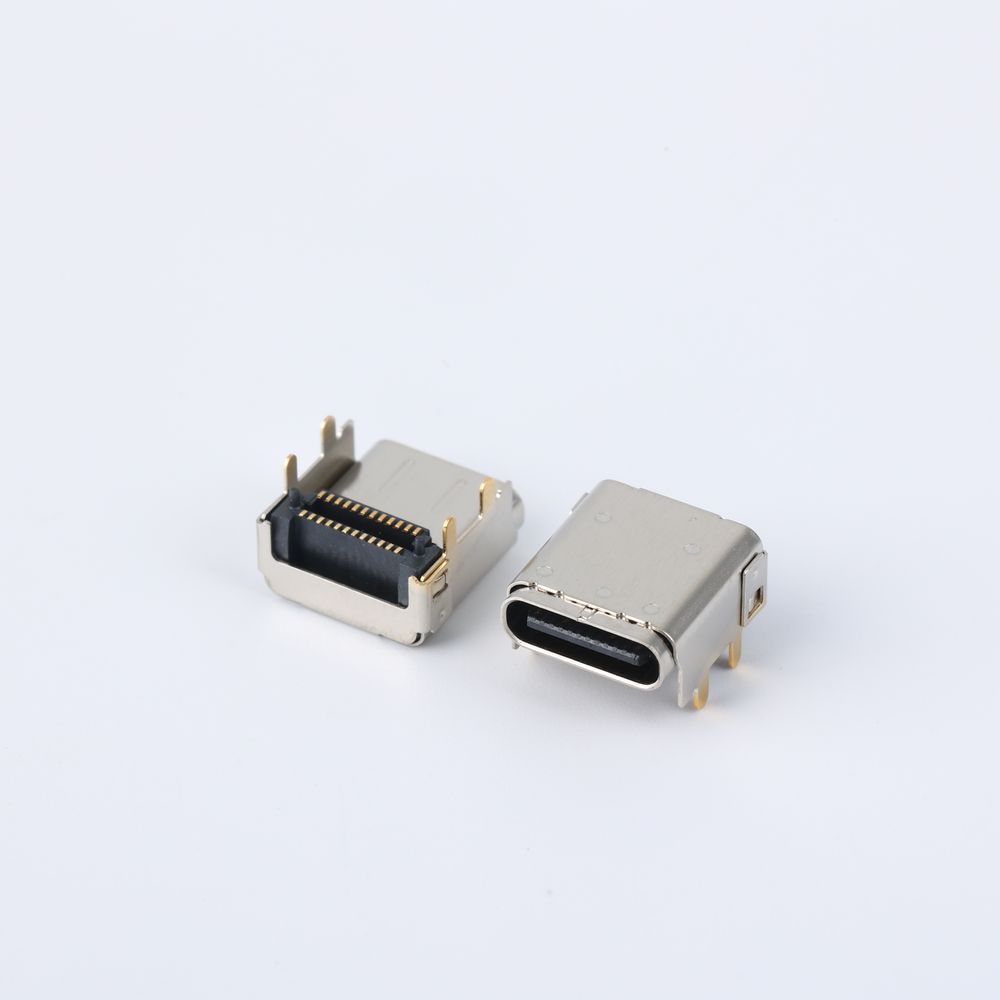

نموذج: AAUS+61R2B+GXG1 TYPE-C CH=+3.4 double SMT double SHELL
علامة تجارية: ييفينغ
| تحميل | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| MOLDING: | LCP UL94 V-0 NLACK |
| CONTACT: | COPPER ALLOY 18400 |
|
PLATED GOLD ON CANTACT AREA
|
|
|
G/F GOLD ON SOLDER AREA
|
|
|
50u” NICKEL PLATING OVER ALL
|
|
| OUTER SHELL: | SUS304, T=0.20±0.03mm |
|
50u” NICKEL PLATING OVER ALL
|
|
|
G/F FOOT BRUSHING GOLD
|
|
| INNER SHELL: | SUS304, T=0.3±0.03mm, 50u” NICKEL PLATING OVER ALL |
| LATCH: | SUS301, T=0.15±0.03mm |
| MECHANICAL: | |
| INSERTION: | 5~20N |
| EXTRACTION: | 8~20N |
| DURABILITY: | 10000 CYCLES |
|
ELECTRICAL:
|
|
| CURRENT: | 5A MAX FOR VBUS 1.25A FOR GND, 025A FOR OTHER |
| VOLTAGE: | 20VDC MAX |
| WITHSTANDING VOLTAGE: | 100V AC |
| CONTACT RESISTANCE: | 40mΩ MAX |
| INSULATION RESISTANCE: | 100mΩ MIN |
| TEMPERATURE RANGE: | -40℃ ~ +85℃ |
