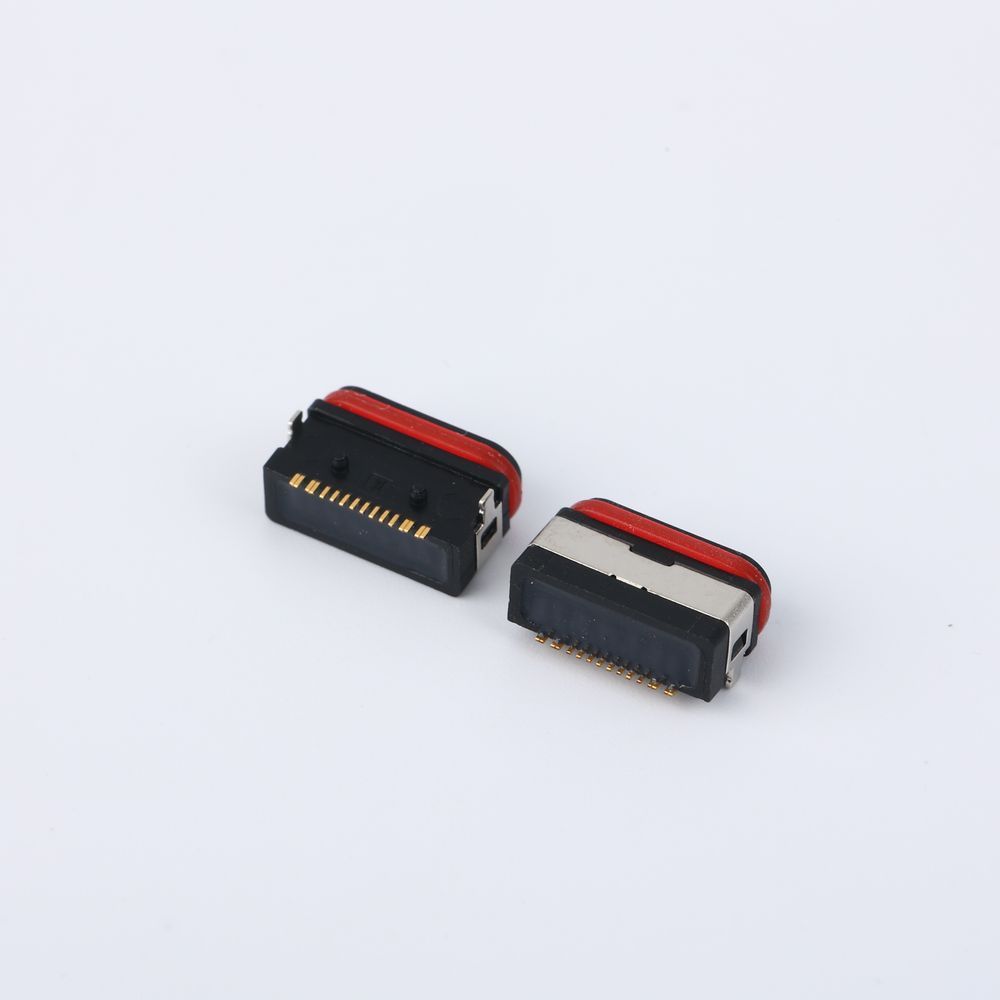

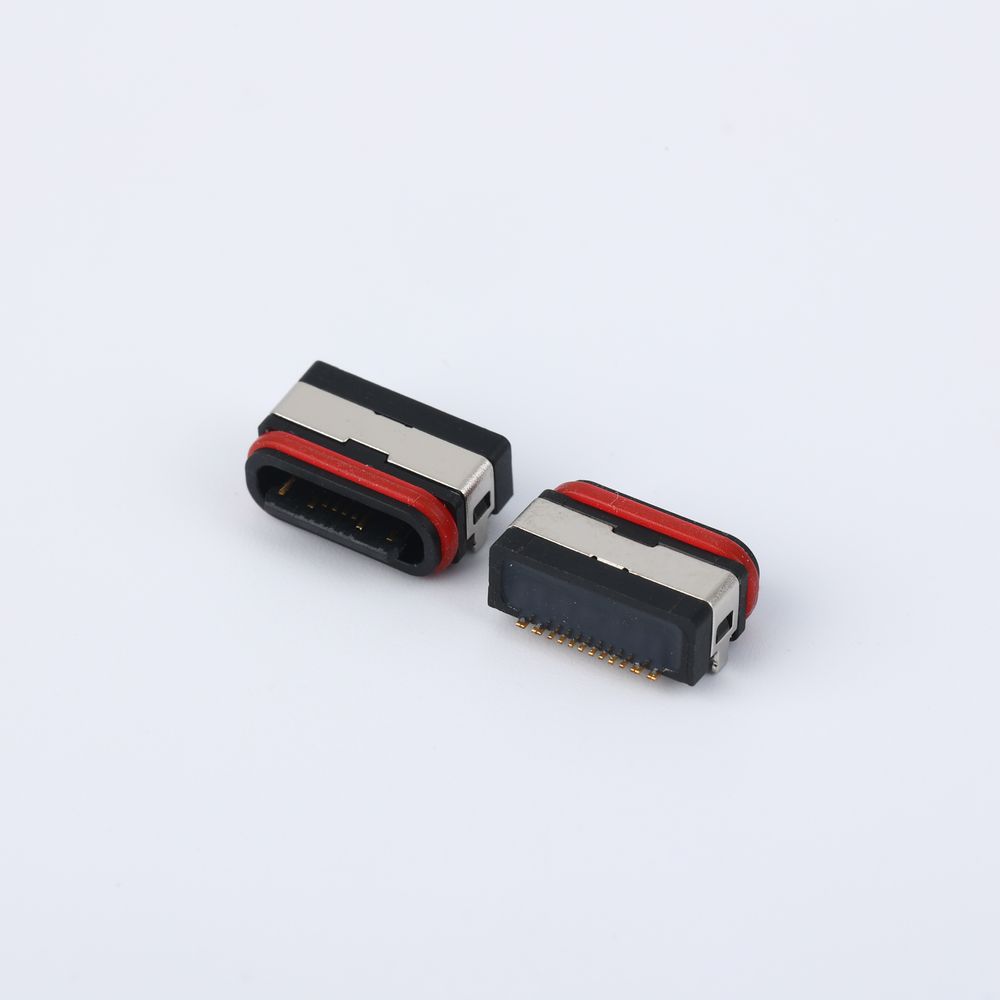

نموذج: AAUS+16C2+NV3TA Type-C 16PIN IPX7 SMT
علامة تجارية: ييفينغ
| تحميل | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | HIGH TEMPERATURE PLASTIC, PA9T LCP UL94V-0 BLACK. |
| CONTACTS: | COPPER ALLOY (C7025), Au PLATING ON CONTACT AREA |
| SHELL: | HIGH TEMPERATURE PLASTIC, PA46 LCP UL94V-0 BLACK. |
| MIDDLE PLSTE: | STAINLESS STEEL, SUS304 NO PLATED |
| RING: | SILICON |
| OUT SHELL: | STAINLESS STEEL, SUS304 NI PLATED |
| CURUENT RATING: | 5.0A |
| VOLTAGE RATING: | 5.0V |
| INSULATION RESISTANCE: | 100mΩ MIN |
| DIELECTRIC WITHSTANDING VOLTAGE: | 100V AC FOR 1 MINUTE |
| INSERTION FORCE : | 5~20N |
| WITHDRAWAL FRCE : | 8~20N |
| DURABILITY: | 10000 CYCLES |
| OPERATING TEMPERATURE: | -25℃~+85℃ |
| THE PEAK TEMPERATURE ON THE BOARD SHALL BE MAINTAINED FOR 10 SECONDS AT 260℃ | |
| WATERPROOF: | IPX7 |
