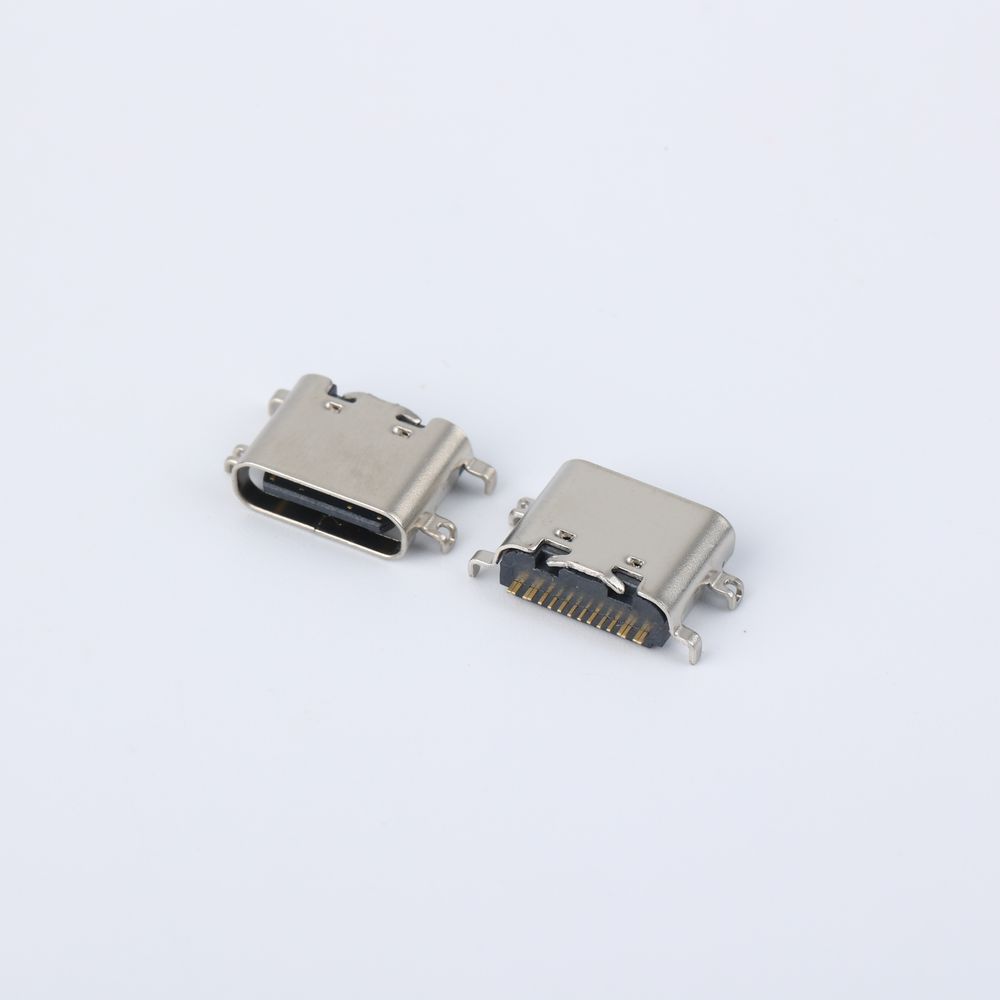

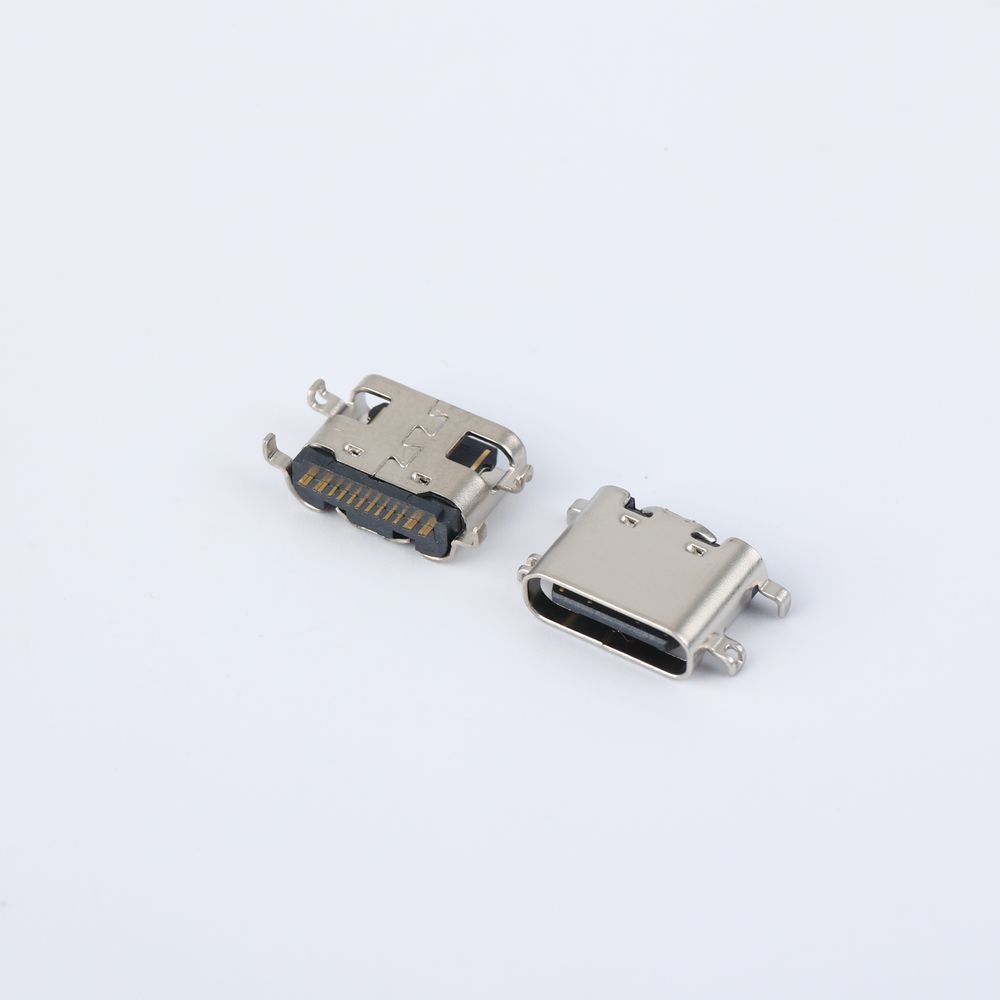

نموذج: 16PIN USB C TYPE
علامة تجارية: ييفينغ
محيط: USB
جنس: أنثى
جهات الاتصال: 16 ص
| تحميل | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | LCP UL94V-0 BLACK |
| CONTACTS: | COPPER ALLOY C18150 |
| MID PLATE: | SUS301 |
| FRONT SHELL: | SUS304 |
| PLATING SPECIFICATION: | |
| CONTACTS: | Ni 50U” MIN. UNDER PLATED OVER ALL |
| 1U"AU PLATED ON THE FUNCTIONAL AREA OF CONTACT. | |
| (GOLD PLATING THICKNESS FOLLOW THE P/N) | |
| PLATING SPECIFICATIONS OF THE SOLDER AREA FOLLOW THE P/N | |
| FRONT SHELL: | Ni 30U”MIN.UNDER PLATED OVER ALL |
| MID PLATE: | CLEAR ONLY |
| MECHANICAL PERFORMANCE | |
| INSERTION FORCE: | 0.5~2.0kgf |
| REMOVAL FORCE: | 0.8kgf~2.0kgf |
| DURABILITY: | 10000 CYCLES |
|
ELECTRICAL PERFORMANCE
|
|
| CURRENT RATING: | 3.0A |
| VOLTAGE RATING: | 5.0V |
| INSULATION RESISTANCE: | 100MQMIN |
| DIELECTRIC WITHSTAND VOLTAGE: | AC 100V FOR 1 MINUTE |
| ENVIRONMENTAL PERFORMANCE: | |
| OPERATING TEMPERATURE:-25'C~+85'C | -25'C~+85'C |
| IR REFLOW: | |
| THE PEAK TEMPERATURE ON THE BOARD SHALLBE MAINTAINED FOR 10 SECONDS AT 260'C. | |
