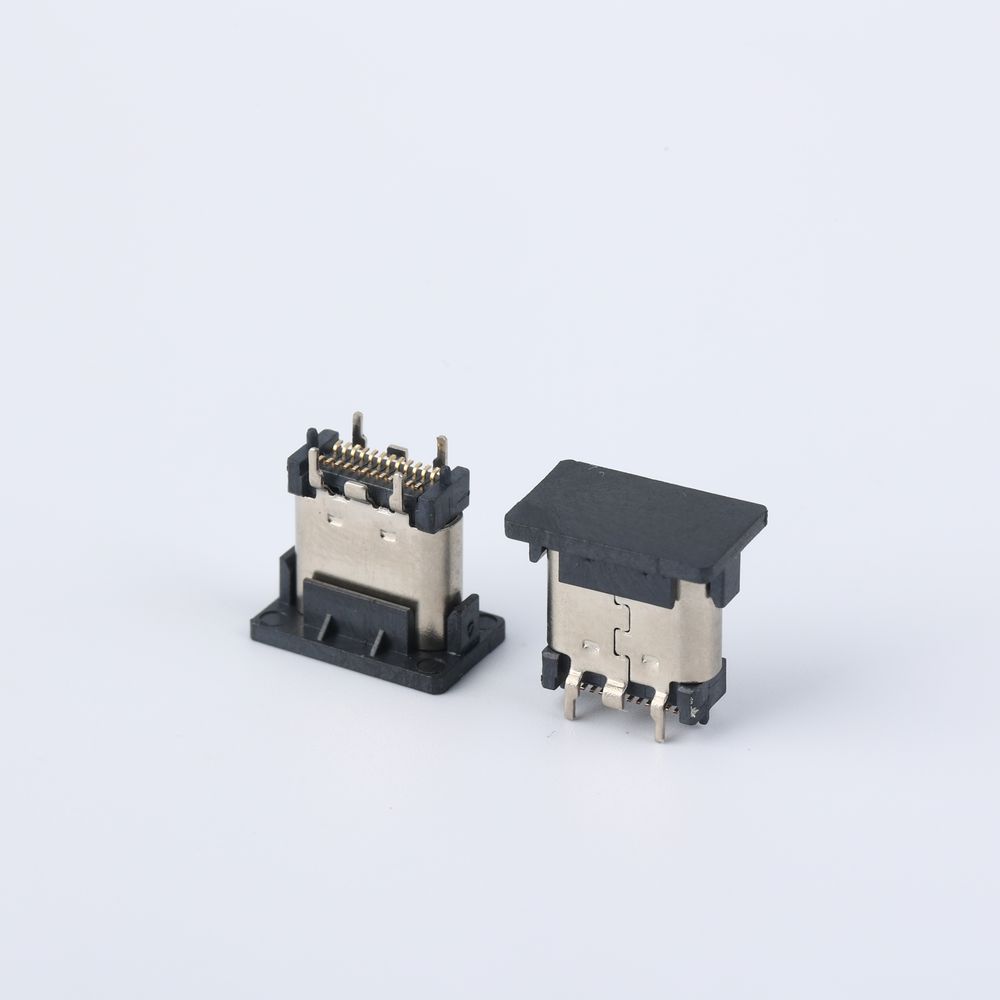

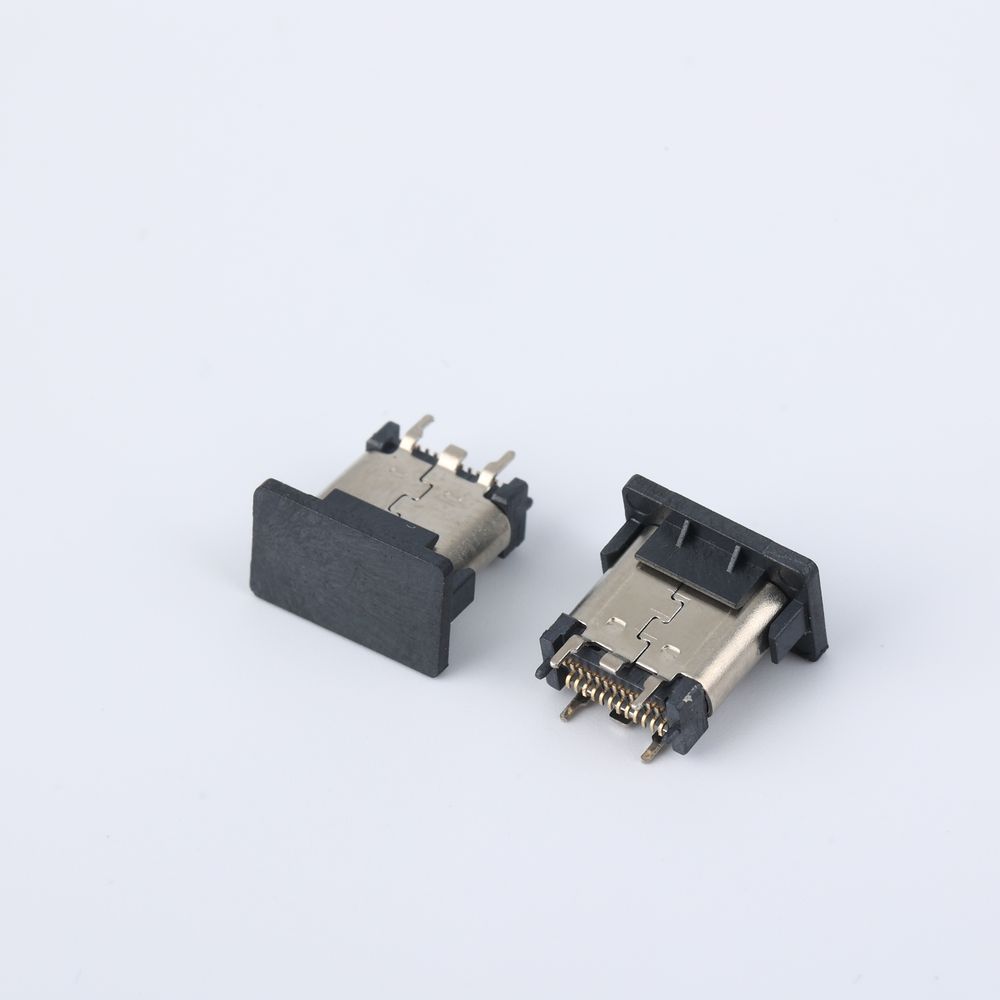

نموذج: 24PIN Type-C 8.8 SMT
علامة تجارية: ييفينغ
| تحميل | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| MOLDING: | LCP UL94 V-0 |
| CONTACT: | COPPER ALLOY |
|
PLATED GOLD ON CANTACT AREA
|
|
|
G/F GOLD ON SOLDER AREA
|
|
|
50u” NICKEL PLATING OVER ALL
|
|
| SHELL: | SUS304-H, T=0.30±0.03mm 50u”NICKEL PLATING OVER ALL |
| EMI SHILD: | SUS304-H, T=0.12±0.03mm |
| LATCH: | SUS301-H, T=0.15±0.03mm |
| MECHANICAL: | |
| INSERTION: | 5~20N |
| EXTRACTION: | 8~20N |
| DURABILITY: | 10000 CYCLES |
|
ELECTRICAL:
|
|
| CURRENT: | 5A MAX FOR VBUS 1.25A MAX FOR OTHER |
| VOLTAGE: | 20VDC MAX |
| WITHSTANDING VOLTAGE: | 100V AC |
| CONTACT RESISTANCE: | 40mΩ MAX |
| INSULATION RESISTANCE: | 100mΩ MIN |
|
ENVIRONMENTAL：
|
|
| TEMPERATURE RANGE: | -30℃ TO +80℃ |
|
THE USB-C RECEPTACLE & ITS CONTACTS SHALL BE FREE OF ANY FOREIGN, DEBRIS AND LOOSE BURRS MATERIAL
|
|
