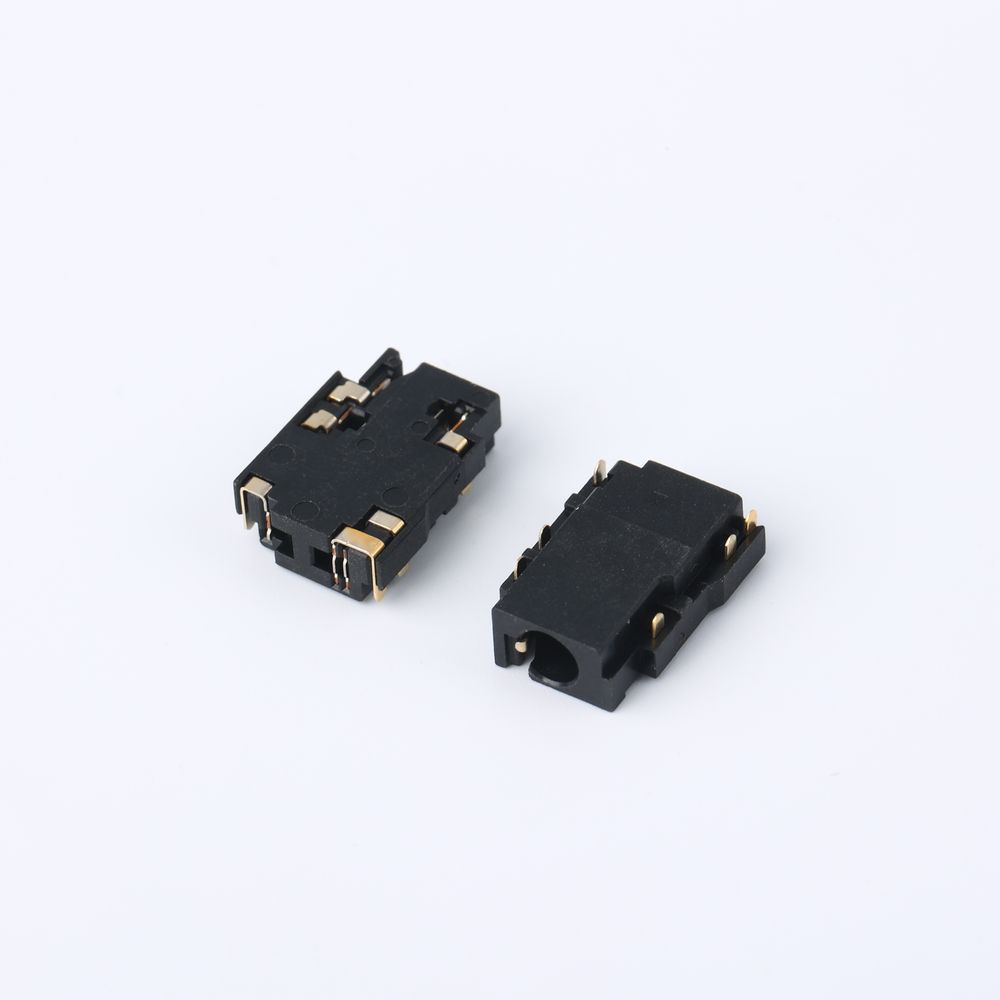

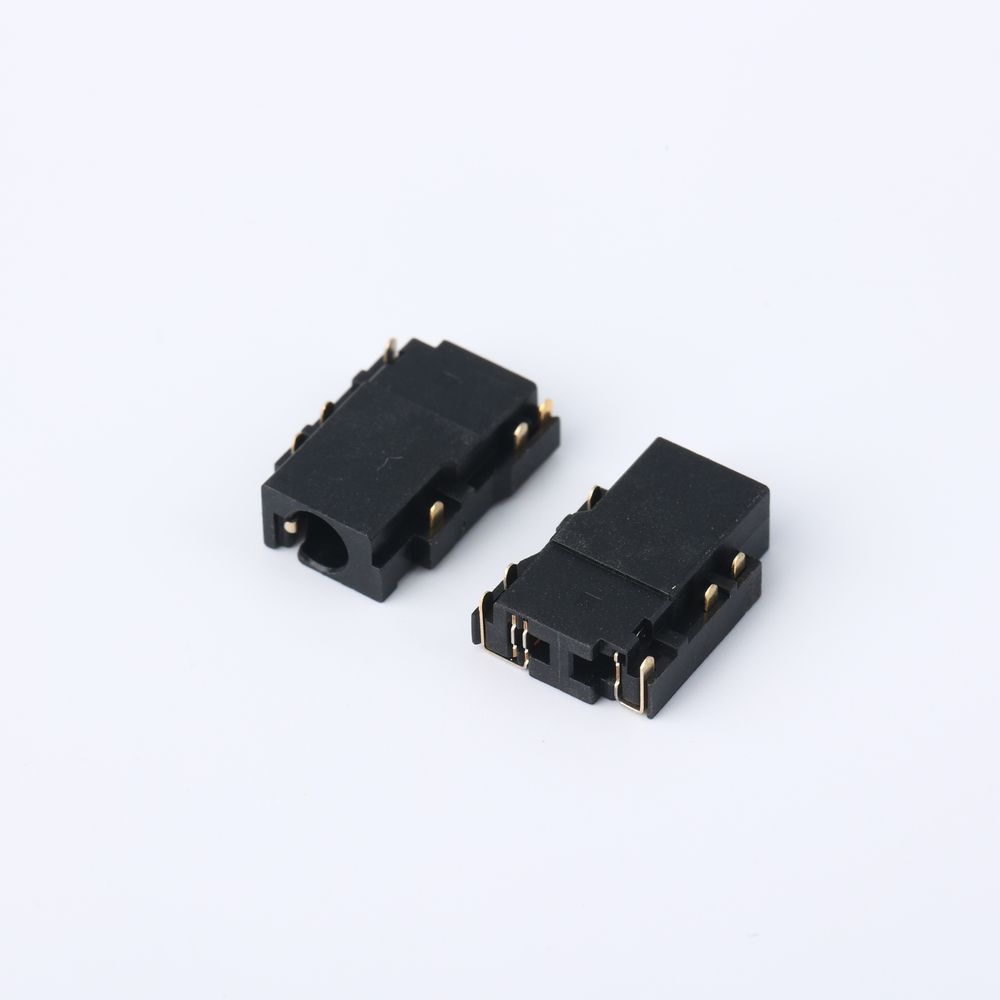

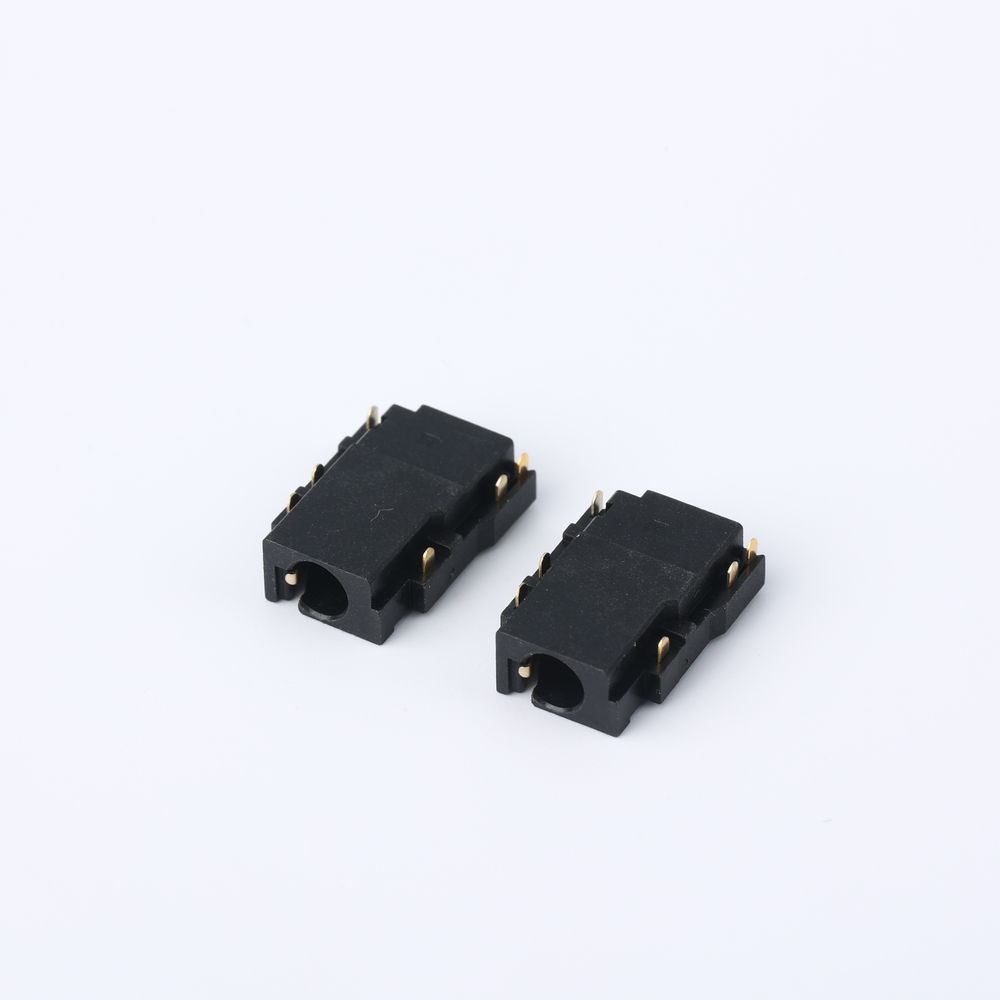

نموذج: AAPJ+J3D06+GF01Z ∅3.5mm phone Jack CH=-0.8
علامة تجارية: ييفينغ
| تحميل | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | HIGH TEMP UL94V-0 BLACK |
| SEPARATOR: | HIGH TEMP UL94V-0 BLACK |
| CONTACT-1: | COPPER ALLOY T=0.20mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL OVERALL |
| CONTACT-2: | COPPER ALLOY T=0.20mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL OVERALL |
| CONTACT-3: | COPPER ALLOY T=0.20mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL OVERALL |
| CONTACT-4: | COPPER ALLOY T=0.20mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL OVERALL |
| CONTACT-5: | COPPER ALLOY T=0.20mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL OVERALL |
| CONTACT-6: | COPPER ALLOY T=0.20mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL OVERALL |
| CURUENT RATING: | 0.5AMP |
| VOLTAGE RATING: | 12VAC RMS |
| CONTACT RESISTANCE: | 50mΩ MAX INITIAL, 100mΩ MIN AFTER LIFE TEST |
| INSULATION RESISTANCE: | 1000mΩ MIN, 500V DC INITIAL, 100mΩ MIN, 500VDC AFTER HUMIDITY TEST |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC RMS 50(60) HZ 1 MINUTE |
| INSERTION FORCE : | 3.0kgf MAX |
| WITHDRAWAL FRCE : | 0.3kgf MIN |
| OPERATING LIFE: | 5000 CYCLES MIN |
| OPERATING TEMPERATURE: | -30℃~+80℃ |
