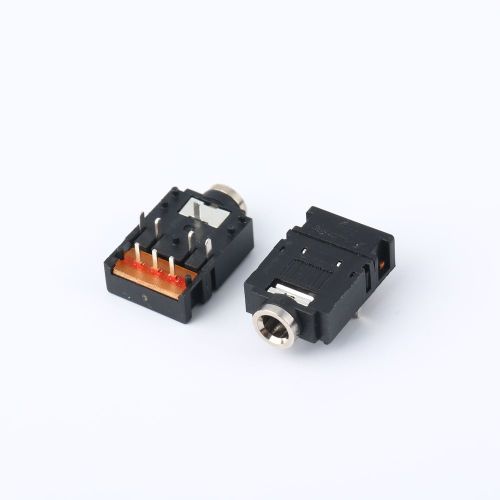

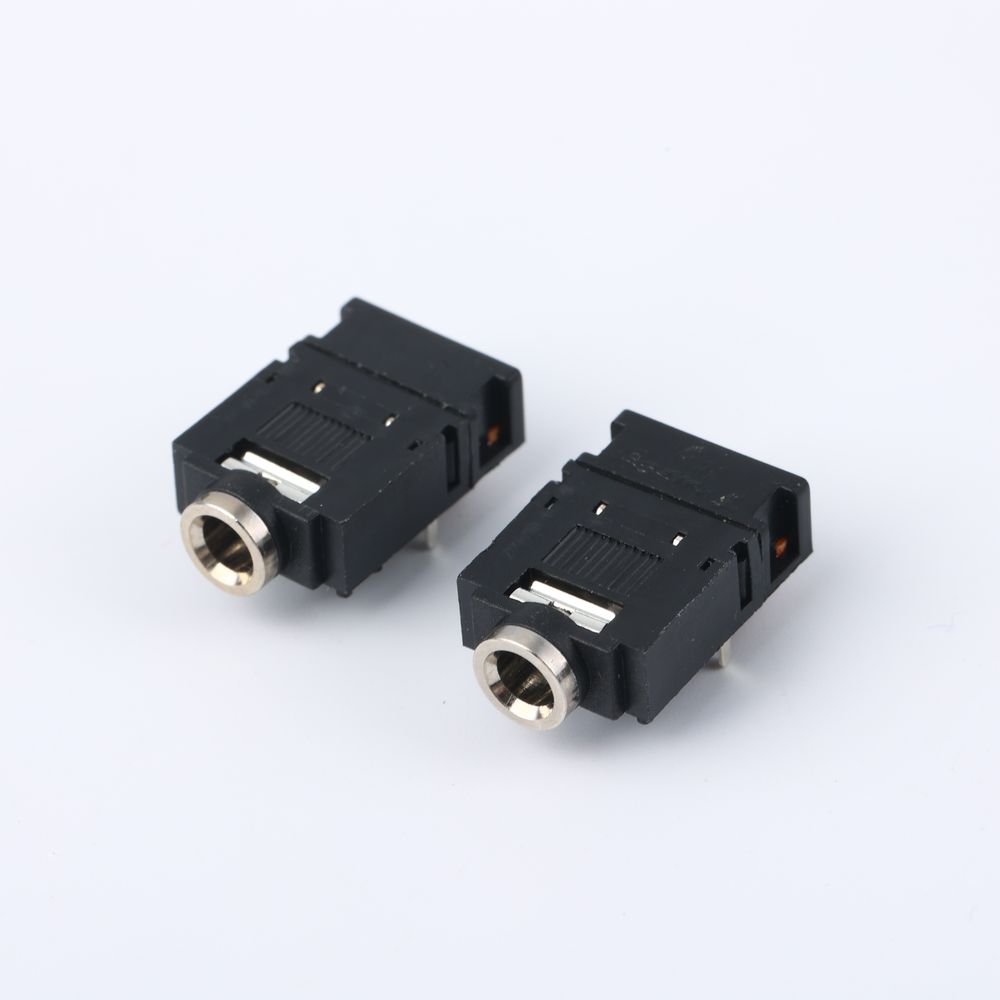

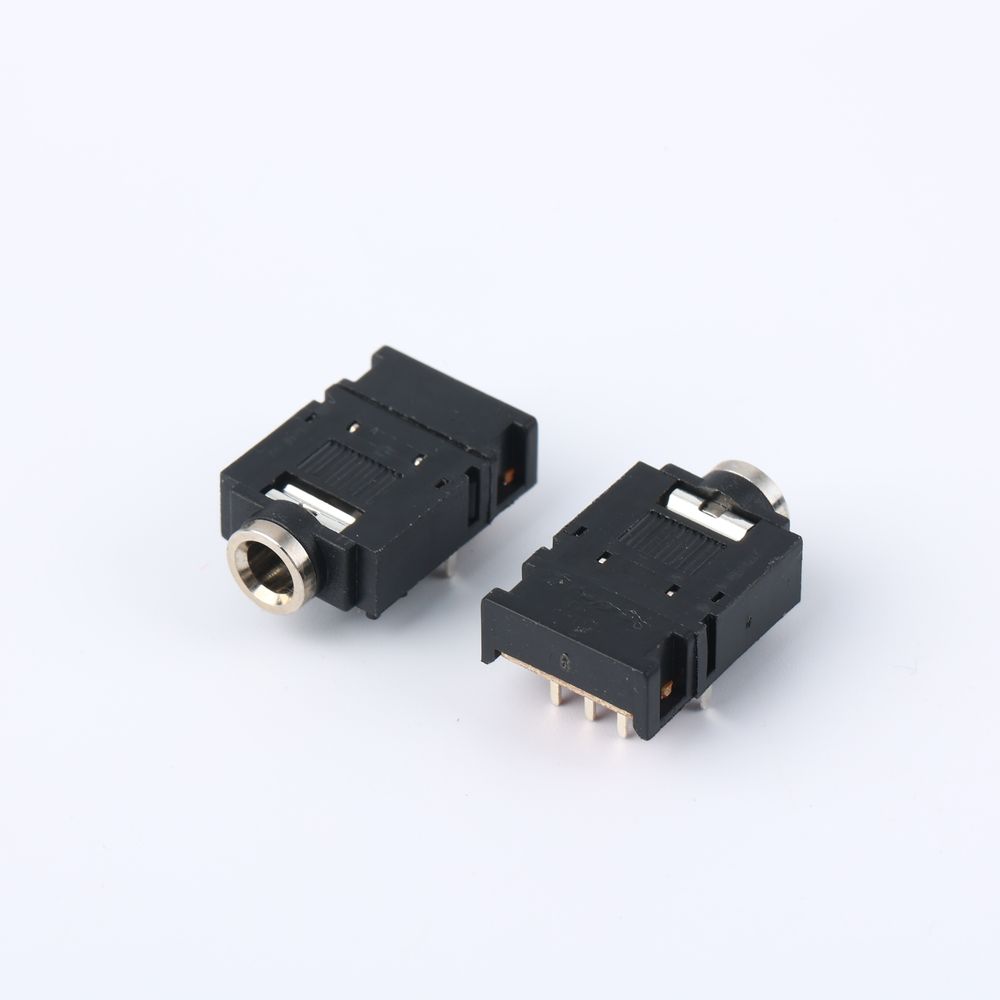

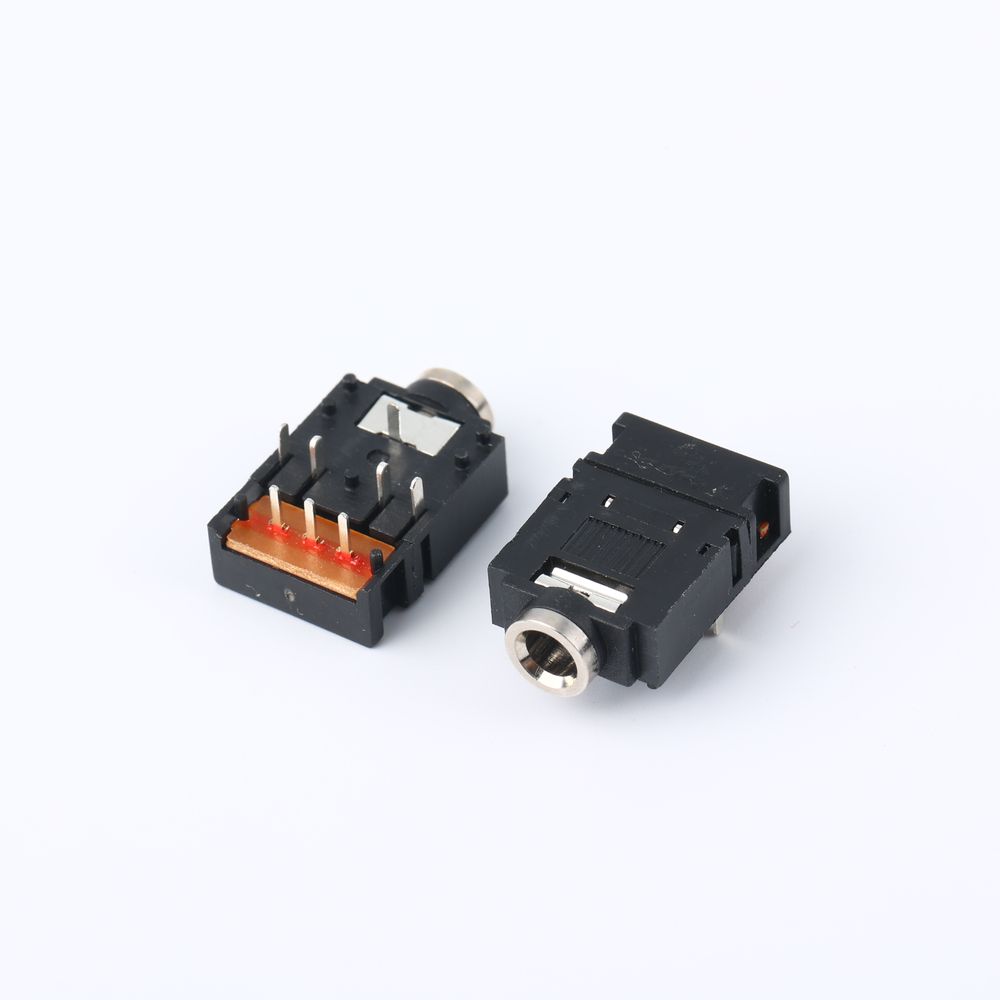

نموذج: AAPJ+307A-APB0A ∅ 3.5phone Jack H=5.0 8PIN
علامة تجارية: ييفينغ
| تحميل | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | PBT BLACK |
| SWITCH HOUSING: | PA66 BLACK |
| BAKELITE: | PF BROWN |
| EARTH SPRING 1: | BRASS T=0.20mm, TIN(SN) 120U'', 40U'' NICKEL OVERALL |
| RING SPRING : | STAINLESS STEEL T=0.20mm, SILVER (AG) 5U'', 40U'' NICKEL OVERALL |
| SHUNT TERMINAL 3: | BRASS T=0.40mm, SILVER (AG) 5U'', 40U'' NICKEL OVERALL |
| SHUNT TERMINAL 4: | BRASS T=0.40/0.35mm, SILVER (AG) 5U'', 40U'' NICKEL OVERALL |
| TIP SPRING : | STAINLESS STEEL T=0.25mm, SILVER (AG) 5U'', 40U'' NICKEL OVERALL |
| SWITCH TERMINAL: | BRASS T=0.35mm, SILVER (AG) 5U'', 40U'' NICKEL OVERALL |
| BUSHING: | COPPER ALLOY, NICKEL 20U'' PLATING |
| SLIDE HOUSING: | PA66 |
| CLIP: | COPPER ALLOY T=0.05mm |
| CURUENT RATING: | DC 0.5A MAX |
| VOLTAGE RATING: | DC 30V |
| CONTACT RESISTANCE: | 50mΩ MAX INITIAL, 100mΩ MIN AFTER LIFE TEST |
| INSULATION RESISTANCE: | 100mΩ MIN, 500V DC INITIAL, 50mΩ MIN, 500VDC AFTER HUMIDITY TEST |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC |
| INSERTION FORCE : | 3~30N |
| OPERATING LIFE: | 5000 CYCLES MIN |
| OPERATING TEMPERATURE: | -20℃~+70℃ |
| PRESERVATIVE TEMPERATURE: | -40℃~+85℃ |
