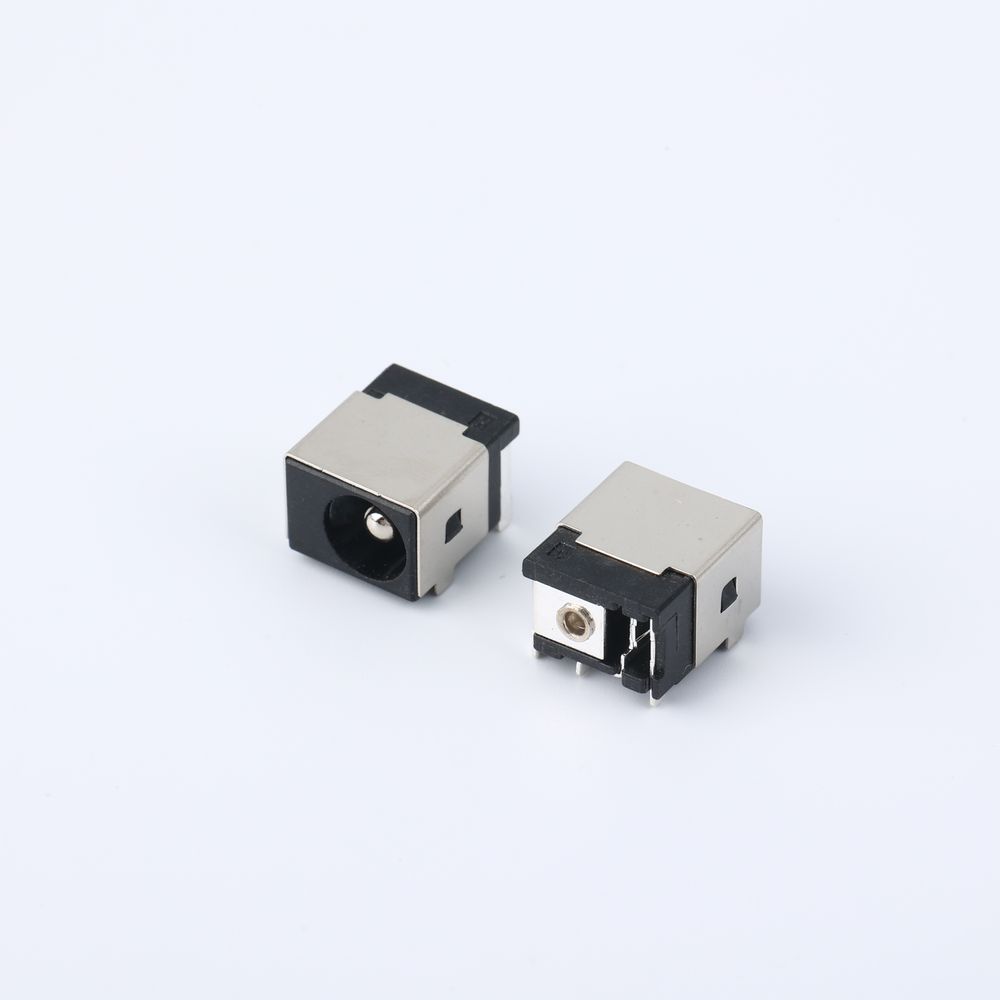

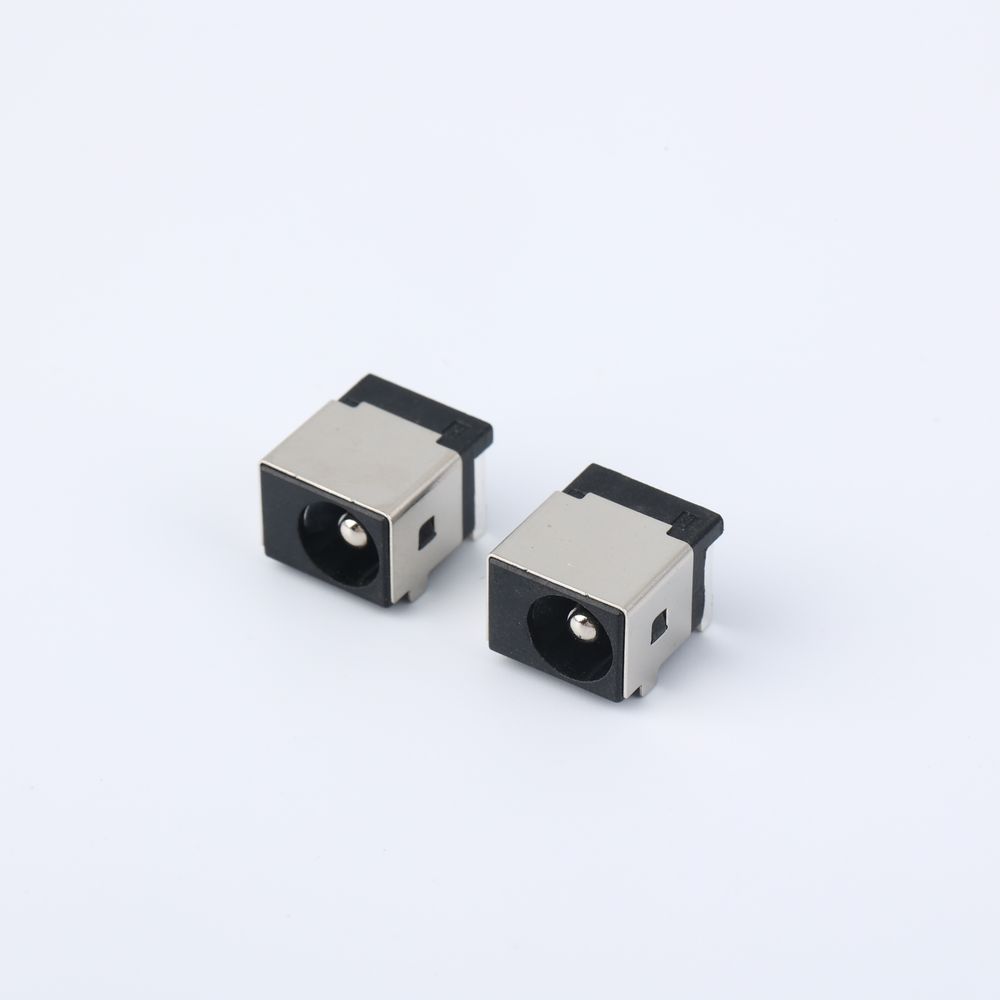

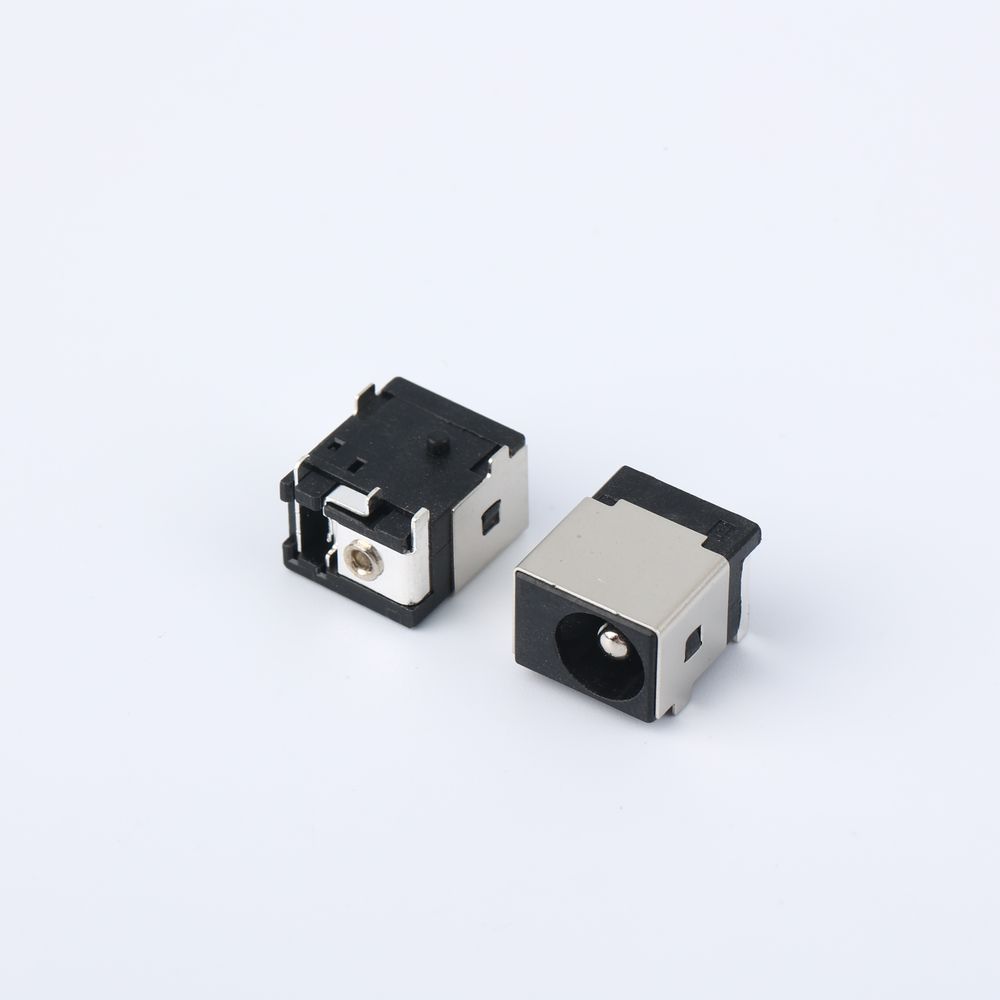

نموذج: AAPJ+7B28-25L6S DC Power Jack 2.5
علامة تجارية: ييفينغ
| تحميل | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | TEMPMOPLASTIC BLACK |
| PIN MP-DC 0007B-28-25Q4N: | BRASS, NI 50U'' PLATED |
| TERMINAL MT-DC-0007B-28-4Q3N: | BRASS T=0.3, NI 50U'' PLATED |
| TERMINAL MT-DC-0007B-26-3Q3S | BRASS T=0.3, AG 20U''/ NI 50U'' PLATED |
| TERMINAL MT-DC-0007B-26-2Q1S: | PHOSPHOR BRONZE, T=0.3, AG 20U''/ NI 50U'' PLATED |
| TERMINAL MT-DC-0007-26-1Q3S: | BRASS T=0.4, AG 20U''/ NI 50U'' PLATED |
| ELECTRICAL CHARACTERISTICS: | |
| RATING CURRENT: | 3A |
| CONTCAT RESISTANCE: | 30mΩ MAX (INITIAL) |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC FOR ONE MINUTE |
| INSULATON RESISTANCE: | 100mΩ MIN MEASURED BY 500 V DC INSERTION |
| INSERTION FORCE : | 0.3~3.0 KGF |
| WITHDRAWAL FORCE: | 0.3~3.0 KGF |
| LIFE TEST: | 5000 CYCLES MIN |
